RESA M Ku
Requtech Electronically Scanned Antenna
fully integrated satellite terminal
RESA M Ku
Requtech Electronically Scanned Antenna – fully integrated satellite terminal.

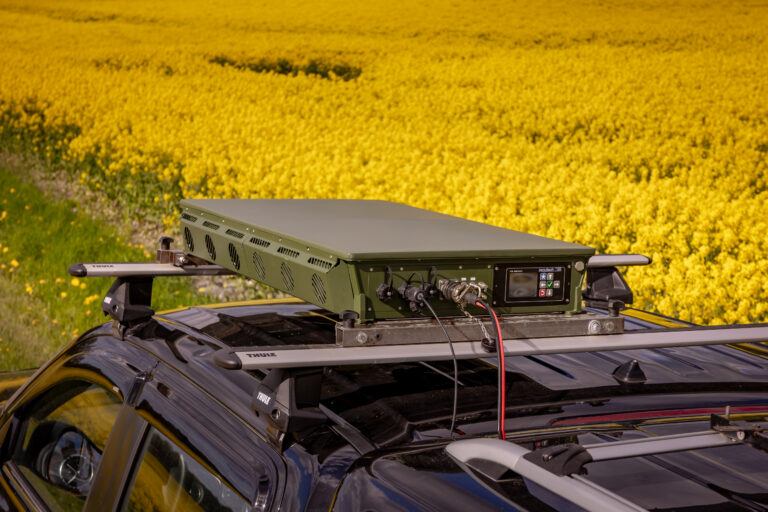

RESA M is a fully integrated phased array flat panel antenna terminal suitable for Satcom-On- The-Move over LEO/MEO/GEO constellations. Designed with an increased transmit capability over RESA S, this member of the RESA family of flat panel satellite terminals, can be used as a stand- alone product or used in a mesh configuration with several RESA terminals. This configuration is suitable for ManPack or Vehicle Mount applications.
Other members of the RESA family include fully integrated terminals for Land-based, Marine and Airborne communications solutions with radomes tailored to each application.
RESA M Ku
Requtech Electronically Scanned Antenna with Ku frequency band
KEY FEATURES
TECHNICAL DETAILS
| RF PERFORMANCE | |
| TX Frequency | 13.75 – 14.5 GHz |
| RX Frequency | 10.7- 12.7 GHz |
| G/T | 9-11 dB/K over frequency and operating temperature |
Max EIRP | 46 dBW |
| Polarity | Linear or Circular electronically switched |
| Side-lobe PDR Tx | PSD Tx FCC 25.218 |
| Tx XPD | 25 dB |
| Rx XPD | 25 dB |
| ELECTRONIC SCANNING SPECIFICATIONS | |
| Tracking error | < 0.05 dB |
| Beam update rate | 100 Hz |
| Azimuth adjustment | 360° with pointing step size of 0.1° |
| Elevation adjustment | 0-60° from zenith with pointing step size of 0.1° |
| ELECTRICAL SPECIFICATIONS | |
| Power Supply | 24V 15A (365W) |
| INTERFACES | |
| DC Power | MIL-DTL-5015 (2-pin) |
| Ethernet | RJ45 |
| ENVIROMENTAL SPECIFICATIONS | |
| Operating Temperature | -20° to +55°C / -5° to +130°F |
| Storage Temperature | -40° to +70°C / -40° to +160°F |
| Protection | IP67 |
| Wind | 250 km/h / 155 mph |
| WEIGHT AND DIMENSIONS | |
| Dimensions (COTM terminal) | 836x442x136 mm |
| Terminal Weight | approximately 20 kg/44 lbs depending on configuration |
