PICO 75
Designed to handle the toughest
weather and wind conditions
PICO 75
Manual or autopointing portable satcom antenna terminal is designed as compact and robust carbon fiber for X, Ku and Ka-band operations. The system comprises of Antenna system, Antenna Control Unit (ACU) and casing.

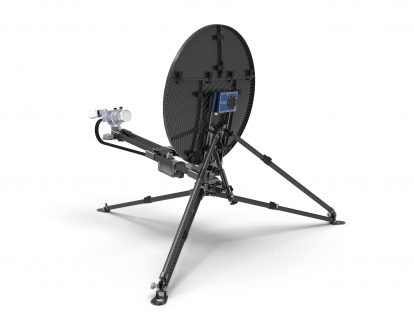

The PICO 75 manual system comes with ReQuTech Assisted Pointing Unit (RAP-U) and sensors with WLAN connection to tablet for quick pointing and satellite acquisition.

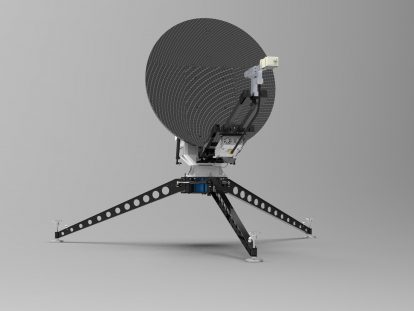

PICO 75-auto comes with antenna control unit (ACU) which controls the motorization. Both the manual and automatic system are designed to handle the toughest weather and wind conditions.
The antenna RF system is provided with feed chain filters, polarizer and related microwave parts. The system is compliant with ITU-R S.465 and EUTELSAT ESOG120 standard.
For Ku band the system has received Eutelsat Characterization.
Compare this system with the PICO 120 terminal.
KEY FEATURES
- Fully integrated manpack
- Robust carbon fiber antenna system
- Feeds for X, Ku, Ka-bands are available
- Delivered in one single case for single band operation
- Eutelsat and ITU-R S.465 compliant
- Can be automated with add on motorization solution
SEGMENTED CARBON FIBER REFLECTOR FOR EASY AND ROBUST INSTALLATION
Environmental specification
- Operating temperature, -30 to 70° C
- Humidity 100% condensing
- Wind speed 45 km/h with 75 km/h gusts
MECHANICAL DETAILS
Manual positioner specification
- Azimuth 360°, pointing accuracy 0.1°
- Elevation 0-90°, pointing accuracy 0.1°
- Pointing stability <0.16°
Weights
- 18kg for manual terminal with Ku and Ka band feeds included.

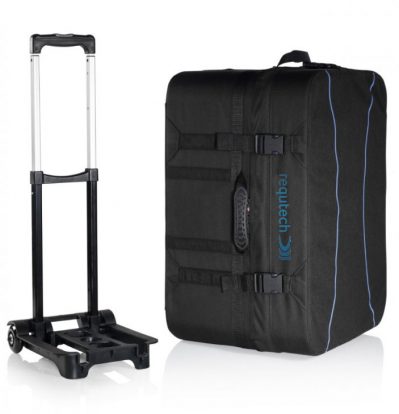

- Packaging – soft case – weight aprox. + 1,8 kg dim. 550x300x170 (mm)
- Packaging- hard case- weight aprox. + 8 kg (ATA/TSA ready for airline travel)
X-BAND PICO 75
TECHNICAL DETAILS
| Transceivers | ReQuTech feed specifcation X-band Horn, OMT and filters for optional BUC and LNB |
| TX Frequency | 7.9-8.4 GHz |
| RX Frequency | 7.25-7.75 GHz |
| EIRP | 47.2 dBW (with 25W BUC) / 50.7 dBW (with 55W BUC) |
| Polarity | Circular RHCP / LHCP, mechanical pol. change |
| Flange for connections | WR112 |
| Return-loss Tx/Rx | 20 dB |
| Isolation Tx-Rx | 70 dB |
| Tx gain@midband | 34.3 dBi |
| Rx gain@midband | 33.6 dBi |
| Tx AR | 1 dB |
| Rx AR | 1 dB |
| G/T Rx | 11.3 dBi/K |
KU-BAND PICO 75
TECHNICAL DETAILS
| Transceivers | ReQuTech feed specifcation Ku-band Horn, OMT and filters for optional BUC and LNB |
| TX Frequency | 13.75 – 14.5 GHz |
| RX Frequency | 10.7 – 12 .75 GHz |
| EIRP | 51.5 dBW (with 20W BUC) 49.3 dBW (with 12W BUC) |
| Polarity | Linear, mechanical skew adjustment |
| Flange for connections | WR75 |
| Return-loss Tx/Rx | 20 dB |
| Isolation Tx-Rx | 70 dB |
| Tx gain @midband | 39.25 dBi |
| Rx gain @midband | 38.9 dBi |
| Tx XPD | 30 dB |
| Rx XPD | 30 dB |
| G/T Rx | 19.2 dBi/K |
KA-BAND PICO 75
TECHNICAL DETAILS
| Transceivers | E TRIA transceiver, Skyware Technologies, HughesNet transceiver ReQuTech feed specifcation 2 or 4 port, Feed systems for optional BUC/LNB |
| TX Frequency | 29.0 – 30.0 GHz |
| RX Frequency | 19.2 – 20.2 GHz |
| EIRP | 57.2 dBW (with 20W BUC) 55.0 dBW (with 12W BUC) |
| Polarity | Circular RHCP / LHCP, mechanical pol. change |
| Flange for connections | WR28 WR42 |
| Return-loss Tx/Rx | 20 dB |
| Isolation Tx-Rx | 70 dB |
| Tx gain@midband | 45.2 dBi |
| Rx gain@midband | 42.2 dBi |
| Tx AR | 0.9 dB |
| Rx AR | 0.8 dB |
| G/T Rx | 22.4 dBi/K |
